Medical Industry Zr705 Pure Zirconium Bar

Name: Medical Industry Zr705 Pure Zirconium Bar
Brand: Sanhui
Price: 1 USD

Quality Medical Industry Zr705 Pure Zirconium Bar wholesale

Model Number : R60702 - Zirconium Bar

Place of Origin : China

MOQ : 10 Kilograms

Payment Terms : T/T

Supply Ability : 5000 Kilograms per month

Delivery Time : 20 days after order

Packaging Details : Standard export plywood cases or according to customized packaging

Brand Name : Sanhui

Certification : ISO9001

Price : Negotiable

Name : Zirconium Bar

Density : 6.51g/cm3

Shape : Round bar ,square bar

Dimensions : Customized

Application : Medical, Industry

Contact Now

High Quality ASTM B550 Zr705 Pure Zirconium Bar/Rod

1. Product Name: zirconium bar / rod

2. Size: dia(6.0—160mm)*L, as your requirement

3. Grade: R60702,R60704,R60705

4. Density: 6.51g/cm3

5. Purity: >= 99.6%

6. Standard: ASTM B550

7. Application: Medical, industrial, metallurgical, etc.

8. Chemical composition:

Designation	Main element composition			Impurity composition (less than or equal to)
Zr702	Zr+Hf	Hf	Nb	Fe+Cr	N	H	C	O
Zr702	≥99.2	≤4.5	-	0.2	0.025	0.005	0.05	0.16

9. Mechanical Property

Standard (product)

Mark

Status

Rm(≥)/MPa

Rp0.2(≥)/MPa

A50mm(≥)/%

Note

ASTM B550-1992(bar,wire)

R60702

R60704

R60705

Anneal

379

413

552

207

241

379

ASTM B493-1987(forging)

R60702

R60704

R60705

Anneal

379

413

483

207

241

379

10. Related Zr Products :

Zirconium Products
Grade Zr2 Zr4 Zr60702 Zr60705
Production	Standard	Size
Zirconium bar	GB8769-88 ASTMB550	dia(6-120mm)*(50-2500mm)
Zirconium wire	ASTMB550	dia(0.5-6mm)*L
Zirconium plate	ASTMB551	(thkness1.0-35mm)(W50-500mm)(L10-2000mm)
Zirconium tube	ASTMB523	OD(6-100mm)*(L50-3000mm)
Zirconium foil	ASTMB628	thkness0.05-6mmW20-150mmL

Our commitment to quality is in everything we do, from the materials we use to our manufacturing process.

Medical Industry Zr705 Pure Zirconium Bar

Product Tags:

zr705 zirconium round bar

r60702 zirconium rod

6.0mm dia zirconium rod

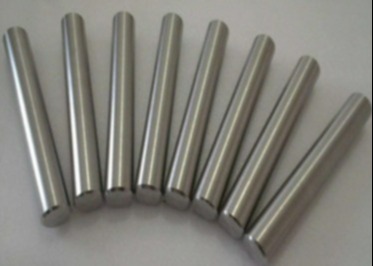

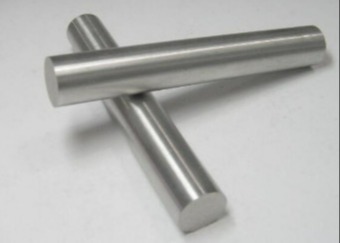

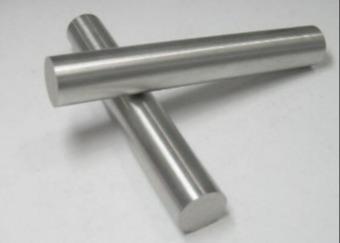

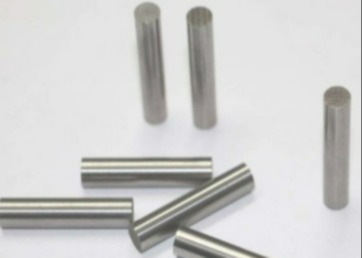

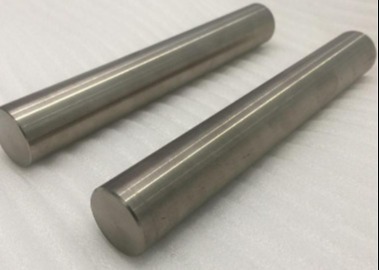

Medical Industry Zr705 Pure Zirconium Bar Images
